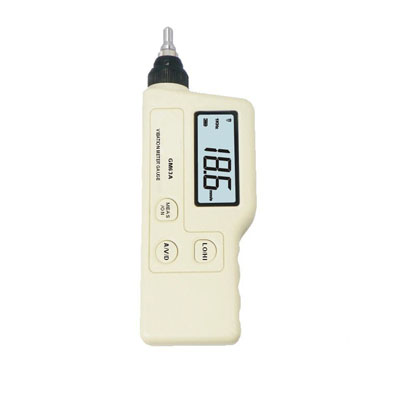

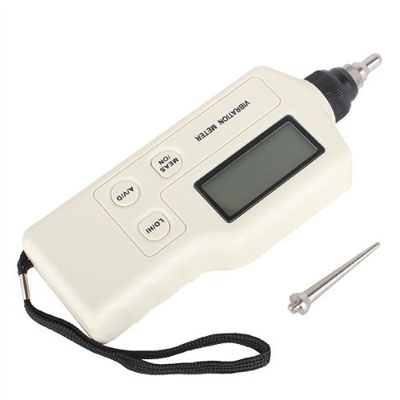

Features *LCD display: 3 1/2 digits display *Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type) *Data output: AC output 2 V peak (display full scale) *Load impedance: 10K or more earphones can be connected *Operation temperature: 0~40C *Equipped two probes (S and L) to adapt the different measurement requirement *Low battery indication *Auto power off *LCD backlight display
Specification * Measuring range: Acceleration:0.1~199.9m/s Velocity:0.1~1999.9m/s Displacement:0.001~1.999 mm (P~P) *Accuracy: ±5%H±2digits *Measuring frequency: --Acceleration: 10Hz~1KHz (LO);1KHz~15KHz (HI) --Velocity: 10Hz~1KHz (LO) --Displacement: 10Hz~1KHz (LO)
Packing: 12PCS, 52*41*32CM, 16.5KG
|
